About

Pelless is a combination of construction and high technology startup, with a line of products in the construction measuring tools family. It was founded at 2018 by Dror Halahmi and Erez Halahmi, both highly experienced Electronics Engineers with decades of experience in the hi-tech industry in various professional and managerial rolls. Pelless was founded as a result of detecting problems encountered while Erez built his own house. The first product developed was the Construction Aid which provides a whole solution for all stages in the construction process. The second product is the iLevel which is an innovative leveler.

Construction Aid

The Construction Aid is the all-in-one construction tool. This product assists workers in all areas of construction including cement plastering, flooring, drywall, electricity, plumbing and more. The goal is that the old measuring tools, such as meters and levelers, will be gradually replaced by the Construction Aid, thus providing us with a faster, more cost-effective as well as significantly more accurate results.

Real time 3D projection of color is presented to the user on his working wall. White = target thickness. Green = too much applied. Magenta = too little applied.

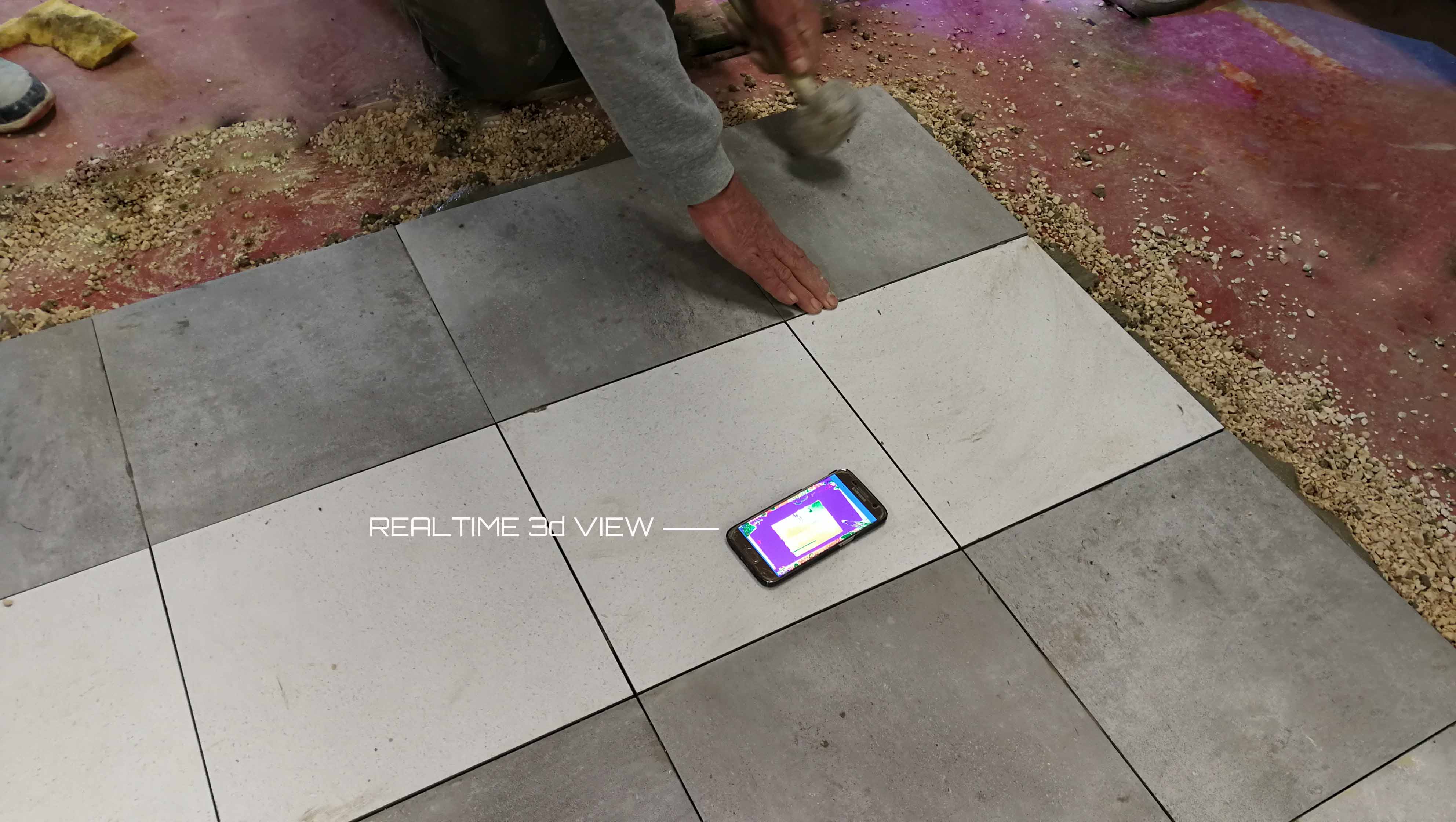

Flooring example

Flooring

Flooring is easy and accurate with the Constuction Aid.

Flooring, in the same way as cement plastering, can be achieved using a projector or using a tablet or smartphone. For example, in the above image, the Construction Aid is placed above the floor and continously checks the flooring. The tile which is being worked on by the user is currently too high, which is represented by the green colored corner on the smartphone. After correction, the green corner will become white as its area.

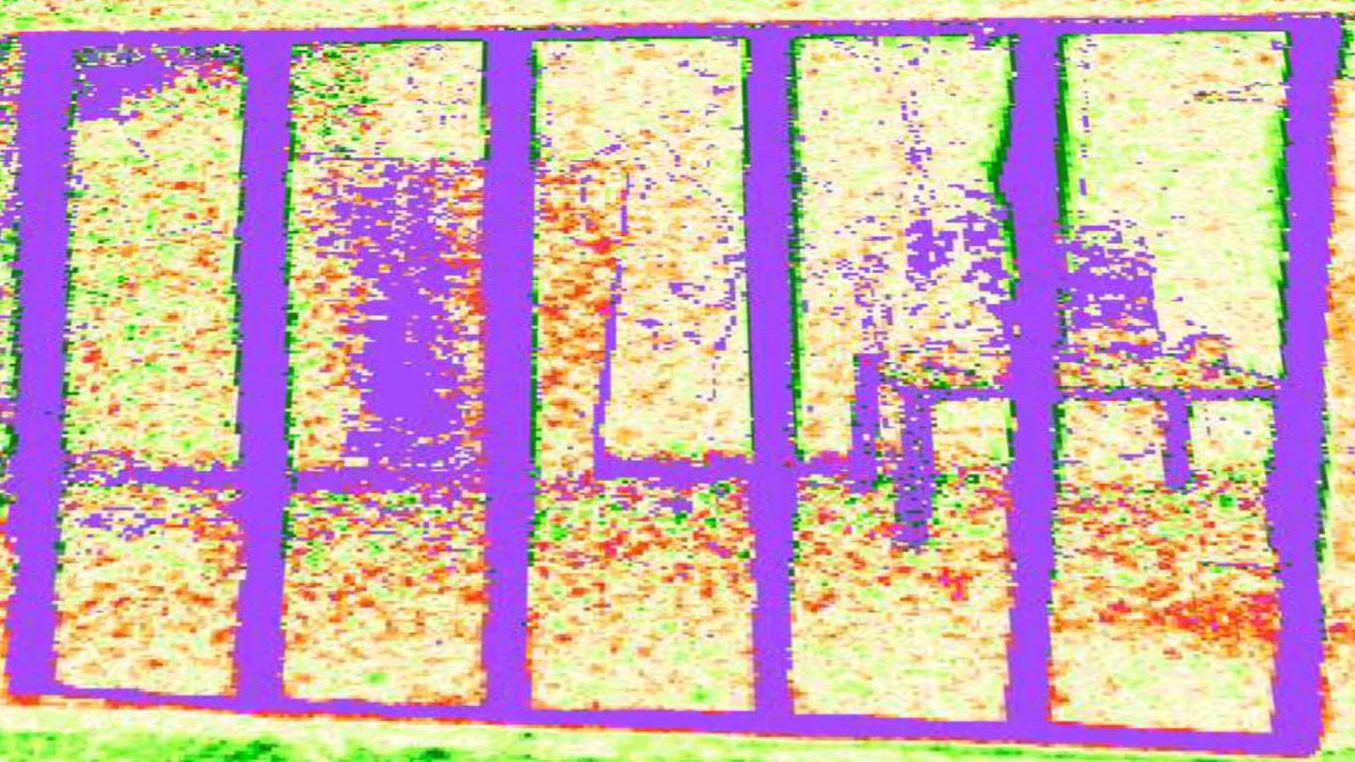

Drywalling example

Drywalling

The plan is projected in the working area.

The Construction Aid presents an accurate map of where the studs should be placed while providing real time colored guidelines to the user's smartphone or tablet, or that can be projected on the studs themselves. The above image show an example of drywall that is built using colored guidelines to place each stud. As a result, all the studs are accurately leveled and placed precisely in the required positions, according to the plans.

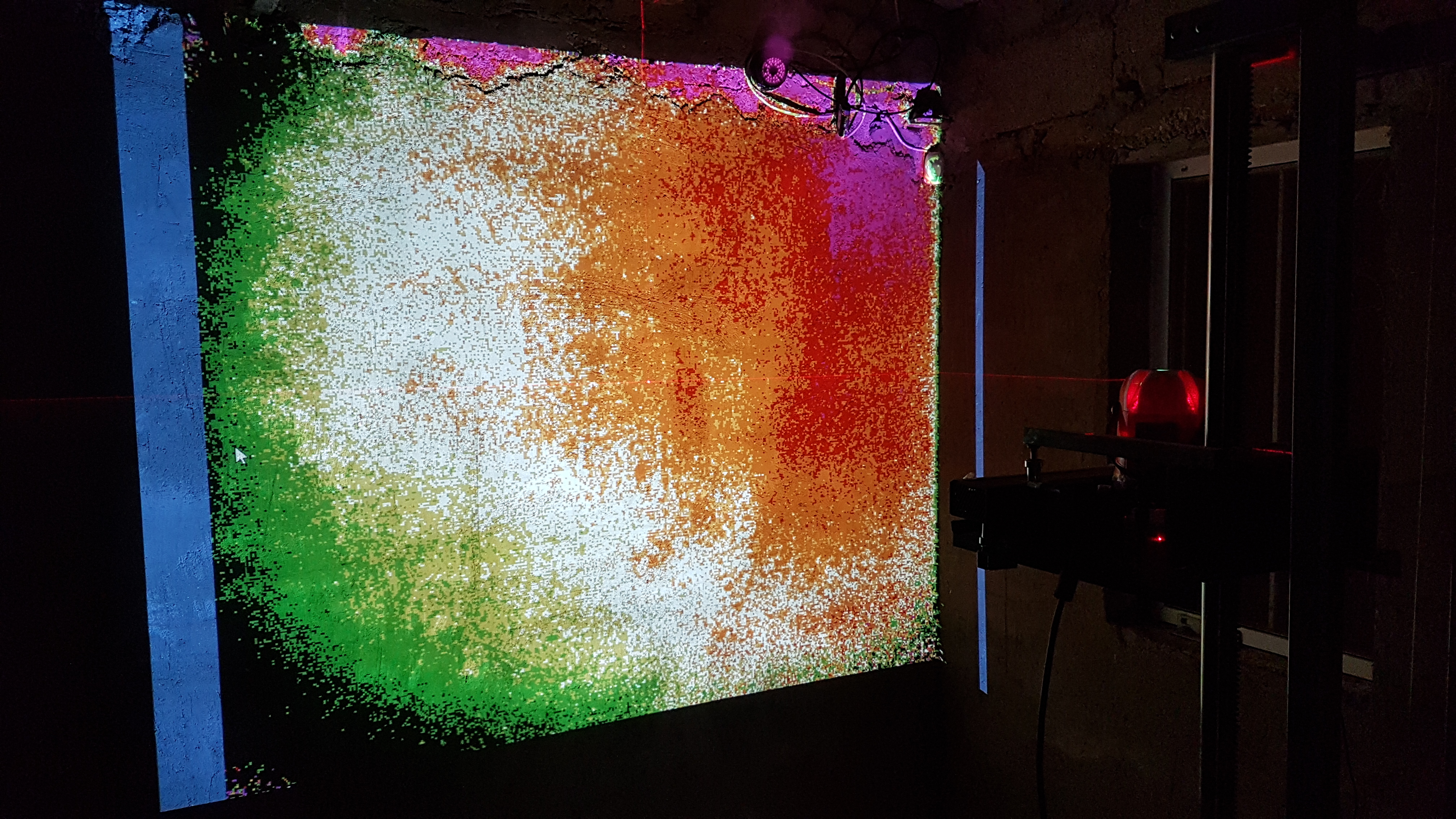

Cement plastering example

Cement plastering

Intuitive interactive colors based plastering.

While working, projeted colors provide accurate guidlines for doing the work for absolute precision. The color map includes many colors for the various depth options, each represent a one mm layer. During the work, the projected colors are continuously automatically real time updated and the work is done way faster and more accurate. The result is a significant cost reduction in material and working time and the precision is way better.

iLevel

The iLevel is a hands free innovative leveler, which gives an accurate audible indication of leveling. It doesn’t need to touch the object and has a variable effective length according to user's preferences. It is composed of two lidars projected on the object and their corresponding measurements are processed which results in an indication of the object's leveling. This is translated to an audible indication.

It can be used for any leveling purpose, both vertical and horizontal or any required angle.

iLevel features

Features

Innovative patent pending leveling tool.

  • Vertical, horizontal and any requested angle leveling
  • Automatic self leveling when placed on a non-leveled platform
  • Hands free leveling with audible real time output
  • Configurable sensitivity
  • Automatic object length selection

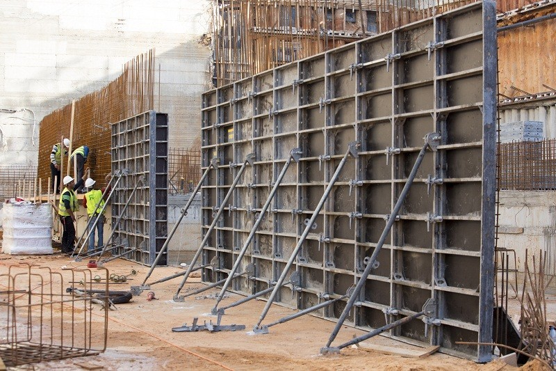

iLevel applications

Applications

The iLevel is suitable for any leveling application, including:

  • Placing platforms vertically for casting concrete
  • Placing drywalls instrastructure
  • Aligning suspended ceilings
  • Vertical / desired angle alignment of pipes and cables
  • Leveling electric sockets, cable trays, radiators and pipe installations

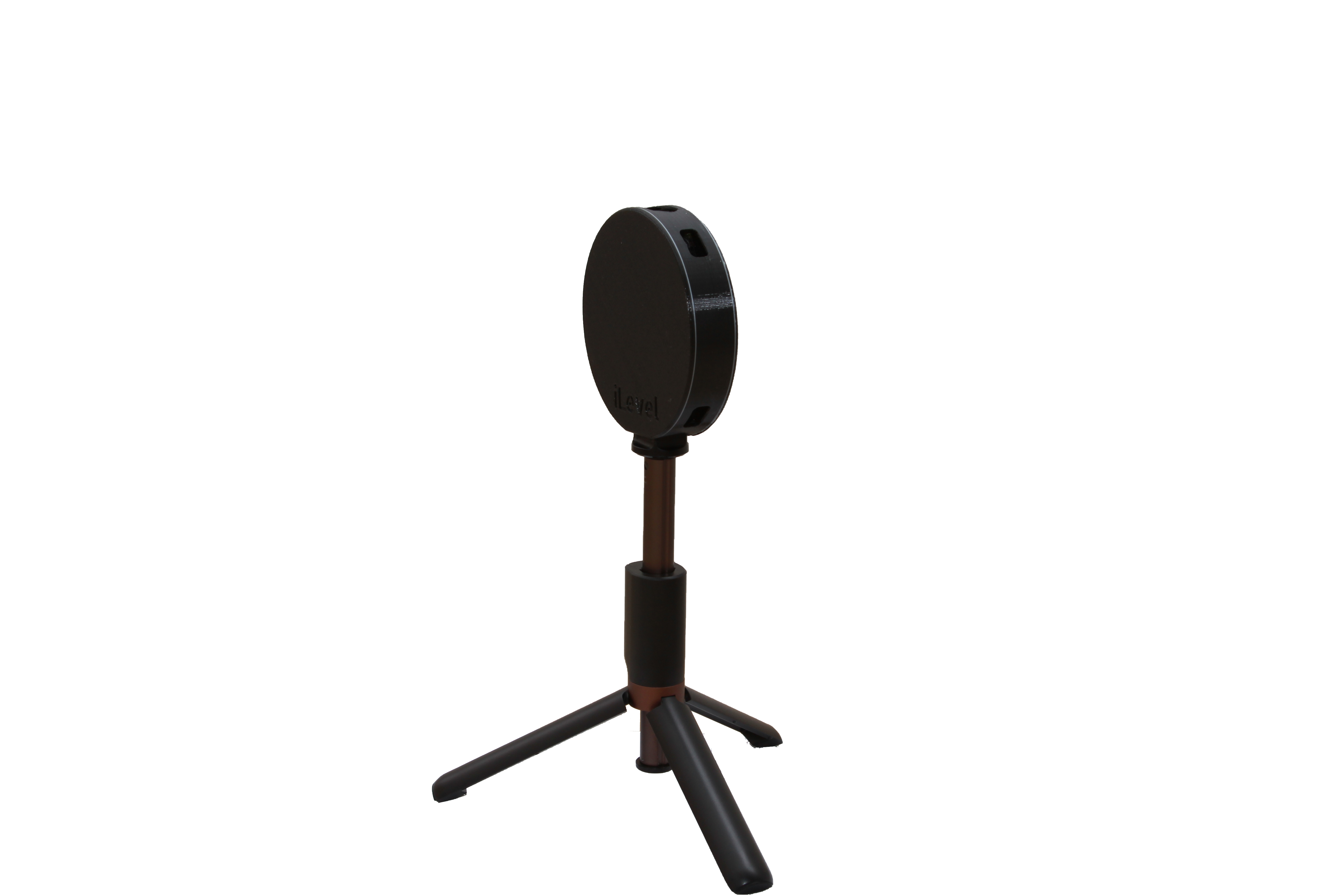

iLevel at work

iLevel at work

Extremely easy to use with just one ON / OFF button.

The iLevel's lidars are pointed to the object and tell the user what to do in order in order to achieve leveling. It doesn't need to be placed on a leveled surface. Just place it on any surface and it'll automatically adjust itself for accurte readings and leveling instructions.

Contact Us

Interested in our technology? Please contact us and we will be happy to get back to you.
